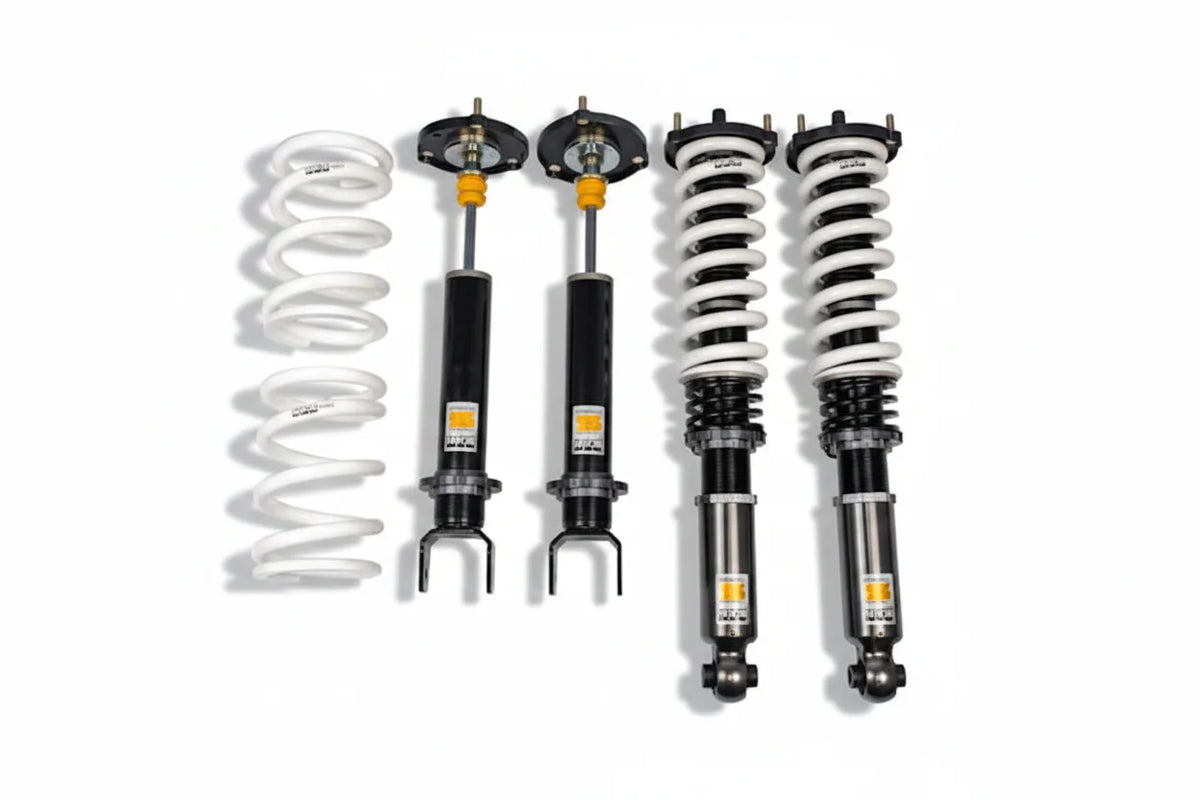

HKS HIPERMAX S Coilovers for Corvette C8 Z06 – Retains OEM Front lift

HKS HIPERMAX S Coilovers for C8 Corvette Z06
Compatible with 2023–2025 Chevrolet Corvette C8 Z06 (Retains OEM Front Lift)
Unlock the full handling potential of your C8 Corvette Z06 with the HKS HIPERMAX S Coilover Kit. Developed specifically for the LT6-powered Z06, this premium suspension system delivers the ideal balance of track-ready performance, daily comfort, and precise adjustability while retaining compatibility with the factory hydraulic front lift system.
Designed and extensively tested by HKS engineers, the HIPERMAX S addresses the factory suspension's harsh ride quality and high-riding appearance by lowering the vehicle for a more aggressive stance while significantly improving ride comfort and chassis control. Rather than relying solely on theoretical calculations, HKS performed extensive real-world testing to fine-tune spring rates, damping, and suspension geometry for superior street and track performance.
At the heart of the system is HKS's latest Dual Preload Valve System (Dual PVS), which reduces excessive damping at high piston speeds to improve stability, minimize unnecessary suspension movement, and deliver more predictable handling across varying road conditions.
The HIPERMAX S features 30 levels of damping adjustment at all four corners, allowing you to tailor the suspension for comfortable daily driving, spirited canyon runs, or dedicated track use. HKS recommends 20 clicks back for a smooth yet controlled street ride and 15 clicks back for increased stability during aggressive or high-speed driving.
Designed for long-term durability, the system incorporates laser-etched markings, spring insulators, PNE surface treatment, WR Needle technology, and specially engineered lightweight aluminum pillow ball upper mounts to maximize rigidity while reducing weight. An electronic suspension error canceller is included as standard equipment to eliminate factory suspension warning lights after installation.
Whether you're looking to eliminate the factory wheel gap, improve cornering performance, or enjoy a more refined suspension without sacrificing factory front lift functionality, the HIPERMAX S delivers one of the most complete suspension upgrades available for the C8 Z06.
Features

Designed specifically for the C8 Corvette Z06
Compatible with the factory hydraulic front lift system
Dual Preload Valve System (Dual PVS)
30-way adjustable damping front and rear
Full-length rear ride height adjustment
Front and rear aluminum pillow ball upper mounts
Electronic suspension error canceller included
Lightweight aluminum components
WR Needle technology for improved damping precision
PNE-coated components for increased durability
Laser-etched adjustment markings
Spring insulators included
Manufactured in Japan under strict HKS quality standards

Benefits

Lowers the factory ride height for a more aggressive appearance
Improves ride comfort compared to the factory suspension
Reduces body roll and unwanted chassis movement
Enhances steering response and overall stability
Delivers predictable handling on both the street and track
Maintains full factory hydraulic front lift functionality
Eliminates factory electronic suspension warning lights

Specifications

Specification
Front
Rear

Spring Rate
12.0 kg/mm (118 N/mm)
13.0 kg/mm (128 N/mm)

Damping Adjustment
30 Levels
30 Levels

Upper Mount
Aluminum Pillow Ball
Aluminum Pillow Ball

Damper Type
Coilover
Coilover

Ride Height Adjustment
Fixed Lower Bracket
Full-Length Adjustable

Default Damper Setting
15 Clicks
15 Clicks

Ride Height Adjustment
Front

Factory Setting: -16 mm

Adjustable Range: -9 mm to -32 mm

Rear

Factory Setting: -25 mm

Adjustable Range: 0 mm to -49 mm

Recommended Damper Settings

20 Clicks Back: Comfortable street driving with excellent ride quality.

15 Clicks Back: Increased stability and sharper response for spirited driving and track use.

What's Included

Front Coilover Assemblies
Rear Coilover Assemblies
Electronic Suspension Error Canceller
Spring Insulators
Installation Hardware

Installation

Direct replacement for the factory suspension
Compatible with the OEM hydraulic front lift system
No additional electronic modules required
Professional installation and performance alignment recommended

Vehicle Compatibility
Compatible With:

2023–2025 Chevrolet Corvette C8 Z06

Not Compatible With:

2020–2025 Chevrolet Corvette C8 Stingray
2024–2025 Chevrolet Corvette C8 E-Ray
C8 ZR1

Notes

Engineered exclusively for the LT6-powered C8 Z06.
Includes a factory electronic suspension error canceller as standard equipment.
HKS recommends 20 clicks back for daily driving and 15 clicks back for high-performance driving.
Factory ride height can be lowered up to 32 mm in the front and 49 mm in the rear, depending on vehicle setup.
Covered by an HKS 3-Year / 60,000 km Manufacturer Warranty.
